For Work Printers Large Format Epson SureColor SC-B6070

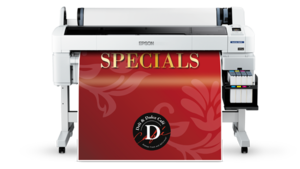

Epson SureColor SC-B6070 Indoor Signage Printer

The Capacity You Need for the Fastest and Biggest Jobs

The SureColor SC-B6070 is the world's first original ink tank large format printer that delivers fast, cost effective and high quality printing.

  • Print up to 44-inch media
  • Epson genuine inks
  • Large 1.5L capacity ink tanks
  • Low total cost of ownership



Genuine Ink Tank System
Commercial large format printing places great demands on speed and turn around time. The SureColor SC-B6070 is the first in the class to integrate large, 1.5L capacity ink tanks for increased productivity and efficiency, reducing the frequency of ink refills while at the same time enabling fast, high-volume printing. Refills, when needed, come in convenient and value-for-money 1L packs containing genuine Epson ink for the best quality.

Superb Reliability
Created as highly reliable solution for continuous production and minimum down time, the printers come with a remaining ink level warning system to alert users to replenish the ink tanks while in operation before they are empty.

Epson's proven and robust Micro Piezo print heads provide the required durability for high volume production while filters in the ink tanks ensure that the ink supply is kept free of impurities that may cause clogging and stoppages.

1-Year Warranty for Peace-of-Mind
Rest assured with a genuine 1-year warranty from Epson that includes parts and print heads, in addition to the support of professional Epson servicing to keep your printer operating at its peak.

Fastest in its Class
Push your printing productivity to the maximum with an unrivalled throughput of 30.6m²/h for the SC-B6070.

Quality You Know and Trust
Epson's Micro Piezo Thin Film Piezo (TFP) print heads achieve extreme precision in ink droplet placement while increasing the nozzle count from 360 to 720 per colour. A single print head utilises 8 nozzle lines, delivering 720 dpi resolution in a single pass, unlike conventional models that can only manage 360 dpi, allowing fast printing speeds even at the highest quality setting of 1440 x 1440 dpi resolution.

Designed for Ease-of-Use
The SureColor SC-B6070 is built with a sturdy, ergonomic design with smart features that make it a breeze to operate and maintain in busy work environments.

Easy Ink Replacement
The ultra high capacity 1L ink packs eliminate the need for frequent ink cartridge replacements. The ink tank system is fully integrated into the printer design and is easy to refill.

Easy Roll Media Loading
Thanks to a jack at the rear, loading a new roll is a one-person job. Media tensioning can be controlled easily from front or back of the printer for speedier set-up to maximise productivity. 'Auto Tension Control' and three platen gap settings ensure accurate and efficient media feeding for reliable and continuous printing.

On-the-Fly Paper Feed Adjustment
A short-cut button on the control panel lets users correct the paper feed even while printing is in progress, thereby reducing print wastage.

Easy-to-Use Interface
The new 2.5"" colour LCD screen control panel lets users use shortcut keys to check and use printer settings intuitively. The large LED alert lamp notifies users of any printing errors. The paper feed button allows users to adjust the paper feed without stopping any print jobs, ensuring minimal print wastage.

Alert Lamp & Buzzer
In the event of printer error, users are quickly alerted.

Status Notification System
Status alerts for instances such as 'End of Print Job', 'Error' or 'Ink Running Out' can be sent to users via e-mail notification, receivable through networked PCs or modern smartphones.

Printing:


Printing Technology: MicroPiezo TFP® Print Head with Variable-Sized Droplet TechnologyNozzle Configuration: 360 x 2 nozzles each colour (x4)Print Direction: Bi-directional printing, uni-directional printingMaximum Print Resolution: 720 dpi x 1440 dpiMinimum Ink Droplet Size: 3.8plPrint Speed: (Print Mode: High Speed / Resolution: 360 x 720 dpi / Passes: 2) 30.6 m2/h
(Print Mode: Production 1 / Resolution: 720 x 720 dpi / Passes: 3) 22.6 m2/h
(Print Mode: Production 2 / Resolution: 720 x 1440 dpi / Passes: 4) 15.8 m2/h
(Print Mode: High Quality / Resolution: 720 x 1440 dpi / Passes: 7/8) 6.2 m2/h

Ink:


Ink Capacity: Tank: 1500ml
Pack: 1500mlInk Configuration: Cyan, Magenta, Yellow, Black

Ink Supply System:


Ink Supply Fill Volume: 1500 mL each color x 4 colorsIn-box Ink Fill Volume: 1000 mL each color x 4 colorsInk Shelf Life: 3 years from printed production date Printer is designed for use with Epson ink packs only, not third-party ink systems.

Printable Area and Accuracy:


Maximum Paper Width: 1118 mm (44")Minimum Cut-sheet Size: 254 mm (10.0")

Roll Media Handling:


Media Width: 254 - 1118mmMedia Thickness: 0.08 to 0.50 mmRoll Core Size: 2 or 3 inchRoll Outer Diameter: Up to 150 mmAuto-Cutter: StandardLeft / Right Margins: 3mm each side

General:


Operating Systems: Windows Vista/7/8/8.1/10 (64bit) or later, Mac OS 10.6 or laterSound Level: Pressure: Approx. 55.1dB
Power: Approx. 7.3dBMemory: Main: 512MB
Network: 128MB

Printer Details:


Printer Language: ESC/P rasterControl Panel: 2.5" Colour LCD
480(W) x 240(H) dotInterfaces: Hi-Speed USB 2.0, Ethernet 100BASE-TX / 1000BASE-T

Power:


Rated Voltage: AC 100 - 240 V (AC 90 - 264V)Rated Frequency: 50 - 60 HzPower Consumption: Operating: Approx. 65W
Standby: Approx. 20W
Sleep: Approx. 3W (Interface is 1000BASE-T)
Power Off: Less Than 0.4WPower Supply: 50 - 60Hz 1.0 - 0.5A

Paper Handling:


Media Handling: Roll Paper: One Roll, Top-loadingAuto Take Up: OptionalSupported Media Sizes: Roll Paper Width: 10" (254mm) to 44" (1118mm)Paper Feed Method: Friction FeedPrint Margin: Max. 1112mm
Side Margin: 3mm Both Sides

Consumables:


Maintenance Box: C13T619300Auto Cutter Spare Blade: C13S902006

Electrical Specifications:


Rated Voltage: AC 100 – 240V (AC 90 - 264V)Rated Frequency: 50 – 60Hz

Power Consumption:


Operating: Approx. 65WStandby: Approx. 20WSleep: Approx. 3W(Interface is 1000BASE-T)Power Off: Less than 0.4W

Options:


Auto Take Up Reel: C12C815411Roll Media Adaptor: C12C811381

Connectivity:


Included Software: ONYX RIPCenter
LFP RemotePanel 2
EpsonNet Setup
EpsonNet Config
EpsonNet Print (Windows only)
