For Work Printers Large Format Epson SureColor SC-B9070

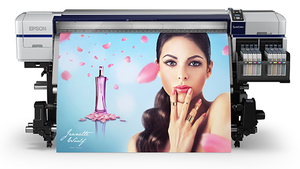

Epson SureColor SC-B9070 Indoor Signage Production Printer

The Capacity You Need for the Fastest and Biggest Jobs

In Epson SureColor SC-B9070, you get a high performance production signage printer that is engineered for your business needs. This dye-based production printer is armed with dual PrecisionCoreTM printheads and advanced image processing technology that deliver high-speed precision printing. Equipped with Epson Edge Print software and Control Dashboard, it allows for maximum business efficiency. The printer is ideal for use in high-volume, short-term indoor signages such as pull-up banners and backlit panels.

  • Dual PrecisionCoreTM printheads for high productivity
  • Epson Precision Dot Technology – LUT, Halftone Module and Micro Weave
  • Dedicated LUT for backlit file enables accurate colour expression on backlit films
  • Ease of use with Epson Edge Print (Epson’s original RIP software) and Epson Control dashboard
  • High reliability with printhead guard and precise media feeding system



High Productivity

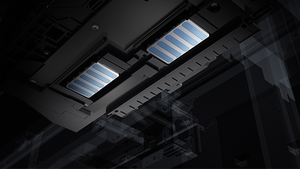

Dual PrecisionCore™ printheads enable users to enjoy unparalleled printing speeds. With increased printing speeds, maximum productivity can be achieved for businesses. The after-heater improves ink-drying performance and this result in media being taken up by the reel without the risk of wet ink transferring to the roll.

High Print Quality
The LUT, Half Tone Module and Micro Weave technologies ensure increased durability, reduction of graininess and high uniformity throughout all images. Combining these three different technologies, the evolution of Epson Precision Dot technology assures excellent print quality. In addition, LUT technology enables users the use of proper colour with backlit films.

Ease of Use
The first printer that uses Epson’s own RIP software, Epson Edge Print, printing jobs are made easier for everyone with a user-friendly interface. Management software, Epson Control Dashboard, allows you to control up to 4 printers at any one time. This allows real-time monitoring, maintenance and printer firmware updating.

High Reliability
Experience fast and ultra-reliable high-volume printing with the newly developed precision media feeding system, which ensures consistent media feed for truly unattended roll-to-roll printing, and enhancements to the printhead guard to withstand head strikes. This reduces downtime and ensures reliable printing throughout.

Printing:


Printing Technology: Dual PrecisionCore™ TFP® PrintheadNozzle Configuration: 360 x 2 x 2 nozzles each color (x4)Maximum Print Resolution: 2880 x 1440 dpiMinimum Ink Droplet Size: 4.1 plPrint Speed: Draft - 1 Pass: Up to 100 m2/h (360 x 720 dpi)
Speed - 4 Pass: Up to 31 m2/h (720 x 720 dpi)
Production - 6 Pass: Up to 20.5 m2/h (720 x 1440 dpi)
Quality - 8 Pass: Up to 15.3 m2/h (720 x 1440 dpi)
High Quality - 12 Pass: Up to 8.6 m2/h (2880 x 1440 dpi)
Max Quality - 16 Pass: Up to 6.7 m2/h (2880 x 1440 dpi)
Max Quality - 24 Pass: Up to 4.8 m2/h (2880 x 1440 dpi) (Backlit Film)Maximum Printable Area: Printing Width: max. 1,616 mm; Side Margin: 5 mm both sides (10 mm when using Media Edge Plates)

Ink:


Ink Type: Epson Dye InkInk Capacity: Pouch: 1,000 ml; CISS Tank: 1,500 mlInk Configuration: Cyan, Magenta, Yellow, Black

Ink Supply System:


Ink Supply Fill Volume: 1500 mL each color x 4 colorsIn-box Ink Fill Volume: 1000 mL each color x 4 colorsInk Shelf Life: 3 years from printed production date Printer is designed for use with Epson ink packs only, not third-party ink systems.

Printable Area and Accuracy:


Maximum Paper Width: 1626 mm (64")Minimum Paper Width: 300 mm (11.8")Maximum Printable Length: Limited by software application, operating system, media length and RIP used

Roll Media Handling:


Media Width: 300 to 1,626 mm (64 inch)Media Thickness: Up to 1 mmRoll Core Size: 2 or 3 inchRoll Outer Diameter: Up to 250 mmReel Outer Diameter: Up to 200 mmRoll Weight: Up to 45kgLeft / Right Margins: 5 mm each side (10 mm when using Media Holding Guide)

General:


Operating Systems: Windows Vista/7/8/8.1/10 (64bit) or laterDimensions: 2,620 x 934 x 1,332 mm (W x D x H with closed covers. Max height 1,670 mm for operation)Warranty: 1-year limited warrantySystem Requirements:Windows Vista/7/8/8.1 (64bit) or later
CPU : Core 2 Duo 3.0GHz
Memory : Memory more than 2GB
HDD : Free space more than 50GBOperating Temperature: 15-35 °COperating Humidity: 20-80 % RH (non-condensing)Weight: 280 kg (without ink)Memory: 512 MB main + 128 MB network

Printer Details:


Printer Language: Standard: ESC/P rasterControl Panel: 2.7" Colour LCDOther Features: Auto Head Alignment Technology (Media feed and Bi-directional), Auto Nozzle Check System, Mail Report System, Custom Paper BackupInterfaces: Hi-Speed USB 2.0, Ethernet 100BASE-TX / 1000BASE-T

Power:


Power Consumption: Operating: Approx. 440 W (=75 W + 360 W)
Ready: Approx. 320 W (=34 W + 280 W)
Sleep: Approx. 14 W (=13 W + 0.5 W)
Power off: Approx. 1.1 W (= 0.6 W + 0.5 W)Requirement: Input Voltage AC 100-120 V or 200-240 V 50/60 Hz

Paper Handling:


Paper Handling: Rear Roll Feed (2 or 3 inch core with max 250 mm diameter and up to 45 kg); Auto Take-up ReeAuto Take Up: StandardSupported Media Sizes: Roll Paper Width: 11.8" (300mm) to 64" (1626mm)Heaters: After-Heater (30 to 55 °C)

Connectivity:


Included Software: Epson Edge Print
Epson Control Dashboard
EpsonNet Setup
EpsonNet Config
EpsonNet Print (Windows only)
