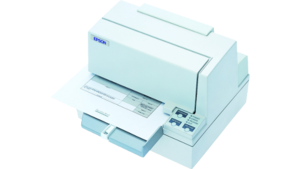

Epson TM-U590 Impact Dot Matrix Slip Printer

Wide Slip Printer

      • Dot matrix printing
      • Handles slips up to 88 characters per line
      • User friendly ESC/POS system
      • Speed: 311/233 cps



Versatile Printing
Designed to handle virtually any printing task including output of slips up to 88 columns wide. Can also provide four copies with one original.

User-Friendly
Complete with the ESC/POS  command system for smooth, error-free operation.Printer operation status provided by the Automatic Status Back function.

General Information:


Product Power Consumption: Approx. 1.9 A (mean)Mass: Approx. 5kg

Print Font:


Font: 7 x 9 / 9 x 9Column Capacity: 88 / 66Character Size (W x H): 1.3 (W) x 3.1 (H) / 1.6 (W) x 3.1 (H)mmCharacter Set: 95 Alphanumeric, 32 International, 128 x 9 Graphic

Data Buffer:


Data Buffer: 4 KB or 69 bytes

Paper:


Thickness: 0.09 mm x 0.2 mmDimensions (mm): 70 (W) x 70 (L) to 210 (W) x 297 (L) (A4 size)

Overall Dimensions (D x W x H):


Overall Dimensions (D x W x H): 252 x 266 x 185 mm

EMI and Safety Standards:


Options Connector: PS-180Power Supply Input: 24 DVC± 10%EMC Standards: VCCI class A, FCC class A, CE marketing, AS / NZS 3548 class BSafety Standards: UL / CSA / TUV (EN60950)

Interface:


Interface: RS-232, Bi-directional parallel

Reliability:


MTBF: 18 x 104 hoursRibbon life: Black: 4.5 x 106 charactersMCBF: 29 x 106 lines

Power:


Power Supply: PS-180 (option)

Printing:


Print Speed: 311 / 233 cps
