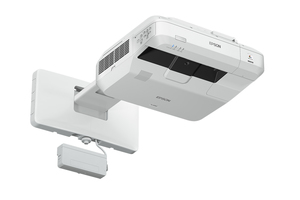

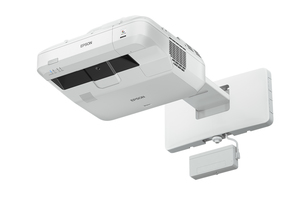

Epson EB-1470Ui Laser Ultra Short Throw Wireless Interactive WUXGA 3LCD Projector

COLLABORATE WITH MAXIMUM INTERACTIVITY

Connect, collaborate and share information effortlessly on a truly multi-purpose laser projection display. The EB-1470Ui laser ultra-short throw interactive projector connects people, technology and ideas into one seamless digital experience, facilitating better communication by turning any surface into an interactive area. Turn it on and immediately you can start writing or annotating the content using a touch or gesture. Collaborate with local or remote participants. Then capture, save, print or email – even from mobile devices.

  • Beyond Full HD resolution
  • White and colour brightness of 4,000 lumens
  • No lamp change with laser light source
  • Dual Screen seamless interactivity
  • Wireless Projection and Miracast®
  • Finger Touch Interactive
  • Ultra Short Throw 80” screen @ 47cm



For list of certified installers, contact us at CertifiedInstallers@esp.epson.com.sg
The SMART Notebook© software will no longer with bundled with Epson interactive projectors from November 2018.

Intelligent Interactive Experience
Finger-touch interactivity
Control your presentations and PC applications or navigate modern touchscreen interface with the finger-touch enabled interactive projectors. You will be able to point, swipe, draw, pinch in/out and rotate using your fingers, even when projecting wirelessly. Simply use the interactive pens for adding notes or writing and let your fingers do the rest.

When connected via USB cable to a PC running Epson Easy Interactive Tools version 4.2 or above, the projector supports six fingers and two interactive pens to write simultaneously for multiple users to participate and collaborate. When operating as a standalone without PC, the projector supports two fingers and two pens to write at the same time.

PC-less Interactive Functionality
With this original PC-free interactive feature by Epson, you can write and draw on the projector’s built-in digital whiteboard or any image projected from other non-PC sources such as document camera, Blu-ray player, video conference system, tablets and smart phones. You may also control photo slideshow loaded from USB thumb drive.

Dual Screen Seamless Interactivity
To offer the most immersive interactive experience, two projectors can be installed side by side to create an ultra-wide interactive panoramic screen of up to 177 inches diagonal. Write or move objects seamlessly across the dual screen with your fingers or interactive pens. With the extended interactive space, more meeting information can now be displayed for cross-referencing and you will never have to worry about limited projection space anymore.

Ease of Presentation
Remote Desktop Access
The interactive projectors can remotely access a PC on your work desk or a desktop hosted on server using the Microsoft Remote Desktop Protocol. You can connect and control the remote desktop using your fingers and interactive pens. Now you can project and annotate on information stored in different remote locations right from your meeting room, giving you unparalleled flexibility and convenience.

Ultra-short Throw Advantage
Lights from these interactive projectors are less distracting as it barely touches the presenter, thus less shadow is formed on screen, allowing audiences to comfortably view completed information projected at all times.

This setup also ensures stable performance of the two interactive pens and provides consistent colour uniformity over the entire screen, enabling presenters with clearer and smooth presentations.

With ultra-short throw, it is possible to project a large screen within the narrow space of retail windows. You can now create captivating window displays with the help of large projections to increase the visibility of store merchandise. The ultra-short throw projectors can also be flexibly mounted onto a table to create an engaging interactive tabletop for meeting and discussions.

Wireless Multi-PC Projection
Project from your laptop and mobile devices wirelessly using Epson projection software*. Up to 50 laptops and mobile devices can connect to a single projector via this software. A laptop or device can be assigned as the moderator and send projected image to connected clients. The moderator can also look at thumbnail previews of connected clients and select up to four of them to be projected on the screen at the same time for comparison.

  • PC/Laptop – Epson EasyMP Multi PC Projection (downloadable from Epson website)
  • Mobile Devices (iOS/Android) – iProjection (available in App Store/Play Store)

Collaborative Meetings
iProjection* App for Mobile Devices
The iProjection app enables both iOS and Android devices to easily connect to the projector. You can use iProjection to wirelessly project various documents, photos and web pages, and draw on the device screen and share on projection. To connect, you may search for the projector in local network or simply scan a QR code displayed on the projector screen. Remote control function is also built into iProjection so you can use the app to control projector functions. In addition, iProjection now supports screen mirroring (without audio) from devices running on Android 5.0 and above.

*In iProjection, projector profile search, multi-screen display, distribution function, audio transfer, movie file transfer and encryption data transfer capabilities are not supported.

Interactive Whiteboard Sharing
The in-built digital whiteboard can be shared with up to 15 laptops, mobile devices or same series interactive projectors residing in the same network. Interactive drawings and image inserted from all parties can be seen in real time by every connected client. Laptops and devices access the common shared whiteboard by using only the web browser, removing the need to install any software or apps. Image from other input sources of the projector can also be interactively shared this way with laptops and mobile devices, allowing every participant in the meeting to co-author and actively collaborate.

Microsoft Office Ink Support
When connected to a PC (Windows Vista or later) projecting Microsoft Office documents, you can draw and write on Microsoft PowerPoint, Excel or Word documents using Microsoft Office Ink. The drawings can be saved into the documents in Microsoft Office file formats for future review or editing.

Quick Information Sharing
With the rich input-output options provided by the smart interactive projector platform, you can enjoy great flexibility of importing information from various sources and sharing the meeting results in multiple ways, saving you precious time and increasing productivity.

When the meeting is over, you may directly print the whiteboard pages or simply distribute them by email with a maximum of 50 participants at one go. The projector is able to access Active Directory of the network to allow you to conveniently search for participants’ email addresses.

Alternatively, save your images and drawings on the digital whiteboard directly to your PC by connecting the projector to your PC via USB cable or save to a USB thumb drive or network storage location. You can also directly print to USB or network printers in A3 or A4 size formats.

DVI Video Output
With the projector video output function, you can output the image from interactive projector to another larger projector to duplicate the projection on a larger screen. This function is perfect for sharing the drawings on interactive projector with a large audience in an auditorium.

Multi-Location Interactivity
Up to four interactive projectors in different locations can share the interactivity of the projector screen as long as they are connected to the same network, for example via VPN. This function is enabled using Epson EasyMP Multi PC Projection 2.0 software to allow you to have a collaborative meeting with participants in different locations.

Superior Image Quality
Beyond Full HD Resolution
Enjoy a dynamic viewing experience with 1920 x 1200 WUXGA resolution that is beyond Full HD. Deliver clearer high-resolution image displays from PCs, tablets and smartphones and watch your photos, 3D CAD, Blu-ray and videos come to life in Full HD. Data figures on spreadsheets and charts will also be displayed clearly for everyone to read accurately.

No Reflection Glare On Projection
Projection screen is not glossy and does not cause glaring reflections of ambient light unlike florescent lamps and sunlight from windows. The audience will not be distracted by such reflections and all information projected can be clearly seen all the time.

Larger Display Size
With a projection screen size of up to 100 inches diagonal, you enjoy bigger image projection for greater visibility.

Wide Range of Connectivity
Simplify Meeting Preparations
With the ability to send the projected image to connected laptops and mobile devices, it is no longer necessary to prepare meeting handouts to save time and paper.

Full Compatibility
Advanced connectivity features mean convenient and hassle-free projections of your presentations. With wide-range interfaces, these projections not only correspond with multiple conventional analogue sources, they are also compatible with HDMI and supports CEC. In addition, one of the two HDMI input terminals is MHL-enabled for the mirroring of Android mobile devices.

Simply connect your MHL-compatible device with the MHL cable to fully enjoy your contents on the big screen. What’s more, when connected, you can charge your Android mobile device and operate it using the projector’s remote control.

Eco Features
- Uses below 0.5W of power in standby mode
- Projector optics employ lead-free lenses
- Unpainted plastic housing reduces the environment impact
- The flame retardants used in the plastic housing do not contain chlorine or bromine
- Laser light technology eliminates the needs for lamp replacement

Better Products for a Better Future™
For more information on Epson’s environmental programmes, visit http://global.epson.com/SR/environment.

What's in the box:

Power Cable: 1.8m
USB Cable: 5m x 2, 1.8m x 1
Remote Control with Battery Attached
Interactive Pens: 2 pens with AA Battery
Pen Stand: 1
Setting Plate
Light Curtain Unit
Light Curtain Unit Bracket
Pen Tip (Felt): 4
Pen Tip (Teflon): 2
Pen Tip Holder
Control Pad
Wireless LAN Unit (ELPAP10)
Stereo Mini for Control Pad

Optional Accessories
Spare Lamp: ELPLP92
Air Filter: ELPAF45
Remote Control Cable Set: ELPKC28 (10m x 2)
(for synchronization of Interactive IR)
Setting Plate : ELPMB46
Table Mount Bracket: ELPMB29
Easy Interactive Pen 1 (Orange): ELPPN05A
Easy Interactive Pen 2 (Blue): ELPPN05B
Replacement Hard Pen Tips: ELPPS03 (for ELPPN05)
Replacement Soft Pen Tips: ELPPS04 (for ELPPN05)

Power:


Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz

Operating Temperature:


Single Use: 0 - 45 °C*4 <32 - 113 °F> (20% - 80% humidity, No condensation)Multi-projection Use: 0 - 40 °C*4 <32 - 104 °F> (20% - 80% humidity, No condensation)

Screen Size (Projected Distance):


Standard Size: 70” - 100” [40.5 - 59.3 cm]
90” screen 53cm

Brightness1:


White Light Output (Normal/Eco): 4,000lm / 2,800lmColour Light Output: 4,000lm

Contrast Ratio:


Contrast Ratio: Over 2,500,000:1

Internal Speaker(s):


Sound Output: 16W Mono x 1

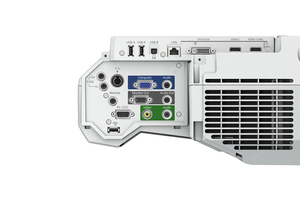

Connectivity:


Network: Wired LAN: RJ45 x 1 (100Mbps)
Wireless: Yes (ELPAP10 Included)Analog Input: D-Sub 15Pin: 1 (Blue)
Composite: RCA x 1 (Yellow)Digital Input: HDMI: 2 (HDMI1 in common with MHL)Analog Output Terminal: D-Sub 15Pin: 1 (Black)Digital Output Terminal: DVI-D: 1 (HDCP contents are not supported)Audio Input: Stereo Mini Jack: 2Audio Output: Stereo Mini Jack: 1Control I/O: RS-232C: D-Sub 9pin x 1
Interactive Sync: In x 1, Out x 1
Touch Unit Control: Mini DIN 8pin x 1
Remote: Stereo Mini x 1 (for Control Pad)Others: USB Type A: 2 (for USB memory, printer, USB Document camera, Firmware update, Copy OSD Settings)
USB Type B: 1 (for USB Display, mouse, K/B, Control, Interactive, Saving Data File to PC via cable)

Operating Altitude:


Operating Altitude: 0 - 3,000 m (0 - 9,842 ft) (over 1,500m / 4,921ft: with high altitude mode)

Start-Up Period:


Start-Up Period: Less than 9 seconds (Epson Logo), Quick Startup: Approx 5 seconds (HDMI / Computer/Video input), Warm-up period: 30 seconds

Cool Down Period:


Cool Down Period: Instant Off

Air Filter:


Maintenance Cycle: 20,000H / 20,000H / 30,000H (Normal / Quiet / Extended mode)

Wireless Specifications (Wireless LAN: Built-in):


Supported Speed for Each Mode : IEEE 802.11b: 11Mbps*3
IEEE 802.11g: 54Mbps*3
IEEE 802.11n: 130Mbps*3Wireless LAN Security: Quick Mode: WPA2-PSK
Advanced Mode: WPA/WPA2-PSK, WPA/WPA2-EAP
Supported EAP type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAPSupported Connection Mode: Infrastructure, Access Point

Geometric Correction:


Vertical/Horizontal Keystone: ±3° / ±3°Quick Corner: Yes

Direct Power On / Off:


Direct Power On / Off: Yes / N/A

Fan Noise:


Fan Noise (Normal / Extended / Quiet): 38dB / 37dB / 27dB

Specifications of Main Parts:


LCD: Size: 0.67” (D10)
Native Resolution: WUXGA (1920 x 1200 pixels)

Interactive Unit:


Technology: InfraredInput Devices: Interactive Pen: Digital Pen (Easy Interactive Pen 1 & 2)
Fingers: Yes (Up to 6 Fingers)Connection To Computer: USB, NetworkCalibration: Pen: Auto / Manual (25 Points)
Finger: Manual (16 Points)Functions: Hover, Right Click, Auto Adjust Pen Area

Weight:


Weight: Approx. 11.4 kg

Dimension Excluding Feet:


Dimension Excluding Feet (D x W x H): 437 x 494 x 172 mm

Projectors Facets:


Resolution, Projectors Facets: WUXGAContrast Ratio, Projectors Facets: Over 2,500,000:1Inputs & Interfaces, Projectors Facets: InteractiveBrightness Range Lumens, Projectors Facets: 2000Short Throw / Ultra Short Throw, Projectors Facets: Ultra Short ThrowFeatures, Projectors Facets: Wifi
Screen Mirroring
Quick CornerLaser / Lamp, Projectors Facets: LaserInteractive / Non Interactive, Projectors Facets: Interactive

Power Consumption (220 - 240V):


Lamp On (Normal/Eco): 423W / 332WStand By (Network On / Off): Under 2.0W / Under 0.5W

Notes:

*1 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

*2 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.

*3 Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.

*4 When used in the general office environment (the amount of floating dust: 0.04 - 0.2 mg/m³). Based on the Epson’s in-house test results.
