Projectors High Brightness Epson EB-Z11000W

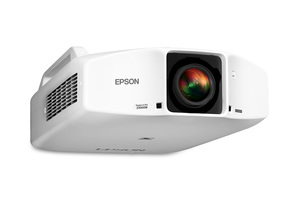

Epson EB-Z11000W WXGA 3LCD Projector with Standard Lens

Bright, brilliant, bold projection

Discover a powerful way to impress your audience the EB-Z11000W high brightness business projector gives you stunning, high-definition images with its 3LCD technology.

      • White and Colour Brightness at 11,000 lm
      • WXGA resolution
      • High Reliability and Durability
      • Suitable for 24/7 usage
      • Flexible projection angles and installations



Deliver Vivid Images
Astonishing 11,000 Lumens Output
With such powerful colour intensity, this ultra-bright projector delivers dazzling, high-definition projection in lecture halls, large conference rooms and auditoriums, even in bright ambient surroundings.

Super Resolution Technology
Epson’s super-resolution technology delivers razor-sharp images even when projecting low-resolution content onto large screens. With image data processed frame by frame, even rapid motion remains crisp.

Frame Interpolation
Enjoy clearer, sharper playback with Epson’s Frame Interpolation Technology, which effectively eliminates motion blurring by inserting new frames between original ones to create smoother motion transition.

Colour Adjustment
The colour adjustment function enables adjustment of hue, saturation, and brightness for each component of RGBCMY. Colour can be adjusted to match your preferences.

Vivid Contrast Brings Images to Life
Differences in brightness from image to image can result in loss of detail. Epson’s Auto Iris feature changes that by delivering an incredible 15,000:1 contrast ratio, automatically adjusting images for optimal clarity. In combination with C2FineTM, the EB-Z11000W offers uniform and vivid images with exceptional contrast for a smooth presentation.

Flexible Projection
Portrait and 360° Projection

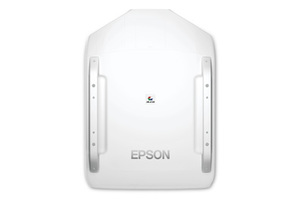

The new portrait mode allows you to place your projector on its side with no impact to its performance, enabling you to project your images vertically without compromising on image quality. This makes it ideal for the projection of advertisements and digital signage.

And with 360° projection, you can project images from any angle, so there’s no limitation, whatever the space restrictions.

Extensive Lens Options
Epson’s EB-Z11000W offers seven optional lenses including the standard lens and a new short throw zoom lens, enabling you to zoom in and project images even within short distances and suit every space.

Wide Lens Shift*
Enjoy the ease and versatility of projector and screen placement with Epson’s extended maximum vertical lens shift of 60% and maximum horizontal lens shift of 19%.

* Lens shift varies in different models and is not applicable for rear projection lens.

Point Correction
Correct single-projector distortion or multiple-projector misalignment directly on the screen. With this feature, images can be quickly fine-tuned by adjusting point by point from right to left, top to bottom, using a projected maximum 9x9 matrix.

Wide Curved and Corner Surfaces Projection
Fit your projection images nicely even on non-flat surfaces. Now you can create stunning projection images on wide curved surfaces and corner walls, which is ideal for advertisements and marketing promotions.

Split Screen
Split screen allows inputs from two separate sources to be displayed side by side on the same screen for a more effective presentation. In video conferences, images of presentation materials and remote participants can be shown simultaneously.

3D Stacking
Create high-brightness 3D images on screen with the optional 3D polarising plate kit by stacking two of the same models in the Epson EB-Z11000W.

High Reliability and Durability
Lamp Relay
Fitted with dual lamps and a lamp select and relay function, you’ll be able to switch between lamps to save on lamp-hour usage and extend the life of your projector lamps for long-lasting, high-quality performance.

Dust-proof Engine
The optical engine has a high level of sealing performance. Dust-caused image quality degradation is reduced with a design that makes it difficult for dust and other particles to penetrate.

Hybrid Cooling Systems
The EB-Z11000W is fitted with Epson’s original liquid cooling system and air cooling for greater reliability. With this proprietary hybrid cooling system, the EB-Z11000W can withstand high operating temperatures while preserving brightness and picture quality, even with 24/7 usage. This enables reliable operation in a wide variety of environments at ambient temperatures of up to 50°C.

Durable Body
The body has been greatly strengthened with the placement of a metal base plate on the bottom surface, and the integration of a reinforcing plate on the top surface.

Wide Range of Connectivity

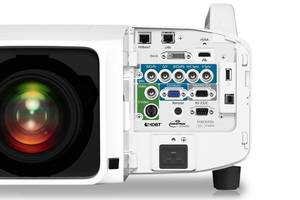

Rich Interface
Epson’s EB-Z11000W is compatible with a wide range of external devices and interfaces, and additional ports now include HDBaseT, DVI-D and SDI. Ideal for large venues, HDBaseT can transmit full HD Video, Audio and Ethernet at low cost through Cat 5e/6 cable up to 100 metres.

Web Control
By connecting the projector to a network, it is possible to adjust the projector installation entries from a PC or tablet.

Multi-PC Projection
With the control of a host PC, up to 50 terminals can be connected via the multi-PC projection from a single projector. The host PC acts as a moderator, selecting media from up to 4 terminals to be projected simultaneously. With the moderator function, you can maintain control and prevent tampering with what’s projected on screen.

EasyMP Monitor & Message Broadcasting
With Epson’s network monitoring and control software, you can see from a single PC which projectors are available and whether they are running efficiently – even across the biggest network. You can configure your projectors and access their serial numbers remotely, as well as receive instant email alerts for pre-defined critical indicators such as non-functioning devices or overheating lamps.

Now you can send messages or announcements as JPEG files simultaneously to any number of projectors on a network. This makes the projector very useful for immediate communication needs or even emergencies.

Third-party Systems Integration
Advanced third-party systems integration means convenient and hassle-free projections. With a wide-ranging interface, the EB-Z11000W not only corresponds with conventional analogue systems, they work with and support a range of systems including Extron XTP Protocol, Crestron Room View, AMX Device Discovery and PJLink.

Auto Power On
With the auto power on function, your projector will automatically turn on once the projection signal is detected, providing you with an easy and hassle-free presentation.

Better Products for a Better Future™
For more information on Epson's environmental programme, visit http://global.epson.com/SR/environment.

What's in the box:

Power Cable: 3m, 3 Wire
Computer Cable (VGA Cable): 1.8 m D-Sub 15pin (Male)
Remote Control: Yes, with Alkaline AA Battery x 2
Bundled Software: Epson Projection Software CDROM
HDMI Cable Clamp/Lock: Yes
Power Cord Clamp: Yes
Foot Cover: Yes
User’s Manual Set: CDROM

Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system (3LCD)

Brightness1:


White Light Output (Normal/Eco): 2 Lamp Mode: 11,000lm / 7,100lm
1 Lamp Mode: 5,500lm / 3,550lmColour Light Output: 2 Lamp Mode: 11,000lm
1 Lamp Mode: 5,500lm Portrait Mode: 2 Lamp Mode: 8,100lm
1 Lamp Mode: 4,050lm

Connectivity:


Network: Wired LAN: RJ45 1 (100Mbps)
Wireless LAN: OptionalAnalog Input: D-Sub 15 pin: 1 (Blue)
5BNC: 1
Component: 5BNC, D-Sub 15pin x 1 (Blue) (common with Analog RGB connector)
Composite: 1-BNCDigital Input: HDBASE-T (RX): 1 (RJ45)
DVI-D: 1
HDMI; 1 (HDCP Supported)
S-video: Mini-DIN 1
DVI-D: 1 (HDCP supported)Analog Output Terminal: D-sub 15 pin x 1 (Black)Control I/O: RS232C: D-sub 9pin 1
Remote Control Input: Stereo Mini Jack 1

Contrast Ratio:


Contrast Ratio: 15,000:1

Wireless Specifications (Wireless LAN: Built-in):


Supported Speed for Each Mode : IEEE 802.11b: 11Mbps*3
IEEE 802.11g: 54Mbps*3
IEEE 802.11n: 130Mbps*3Wireless LAN Security: WPA-PSK (TKIP/AES) / WPA2-PSK (TKIP/AES)

Screen Size (Projected Distance):


Zoom : Wide: 60” - 500” [1.99 - 17.17 m]Zoom : Tele: 60” - 500” [3.26 - 27.77 m]Standard Size: 100” screen 3.37 - 5.49 m

Geometric Correction:


Corner Wall: YesPoint Correction: Yes

Operating Temperature:


Operating Temperature: 0 - 50 °C <32 -122 °F> ( 20% - 80% humidity, unfrozen )
Thermal Shut Down > Normal1 50°C (122°F), ECO & Normal2 55°C (131°F)

Operating Altitude:


Operating Altitude: 0 - 3,048 m <0 - 10,000 ft> (over 1,500m / 4,921ft: with high altitude mode)

Start-Up Period:


Start-Up Period: About 20 seconds, Warm-up Period: 30 seconds

Cool Down Period:


Cool Down Period: Instant Off or 0 second

Dimension Excluding Feet (W x H x D):


Dimension Excluding Feet (W x H x D): 534 x 197 x 741 mm

Weight:


Weight: 26kg

Air Filter:


Type: High Efficiency FilterMaintenance Cycle: 10,000 hours *4

Fan Noise:


Fan Noise (Normal / Eco): 40dB / 35dB

Projectors Facets:


Resolution, Projectors Facets: WXGAContrast Ratio, Projectors Facets: 15,000:1Brightness Range Lumens, Projectors Facets: 10001Features, Projectors Facets: Wifi
Quick Corner
Edge Blending
Lens Interchangeable
Curve
Corner wallLaser / Lamp, Projectors Facets: Lamp

Main Parts Specification:


LCD: Size: 1.03" wide panel with MLA (D8, C2 Fine)
Native Resolution: WXGA (1280 x 800)

Power Consumption (220 - 240V):


Lamp On (Normal/Eco): 1060W / 788WStand By (Network On / Off): 2.9W / 0.37W

Notes:

*1 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

*2 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.

*3 Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.

*4 When used in the general office environment (the amount of floating dust: 0.04 - 0.2 mg/m³ ). Based on the Epson’s in-house test results. 25°C (77°F)
