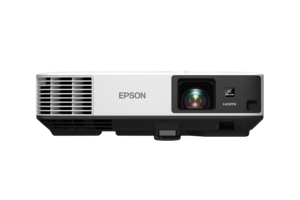

Epson EB-2040 XGA 3LCD Projector

A SIMPLE GESTURE FOR GREATER CONVENIENCE

Leave the lights on and take control whether in the meeting room or classroom. Epson’s EB-2040 projector is engineered to shine outstandingly even in well-lit environments to enrich your presentation experience. This projector allows a wide variety of input methods from a wide-range of devices.

      • XGA Resolution
      • White and Colour Light Output at 4,200 lumens
      • Multi-PC Projection
      • 2 x HDMI
      • Split Screen



Brilliant Presentations
Bright and Light
Even though its light weight and compact size enable it to be carried from room to room, the projector is capable of highly visible images thanks to its high brightness and superior 15,000:1 contrast ratio. Room lights don’t have to be dimmed to see bright and clearly projected images, allowing meeting participants to concentrate better for improved meeting productivity.

High Quality and Cost-effective Connectivity
Full Compatibility
Advanced connectivity features mean convenient and hassle-free projections of your presentations. With a wide-ranging interface, the projector not only corresponds with multiple conventional analogue sources, it is also compatible with HDMI input. In addition, one of the two HDMI input terminals is MHL-enabled for the mirroring of Android mobile devices.

Simply connect your MHL-compatible device with the MHL cable to fully enjoy your contents on the big screen. What’s more, when connected, you can charge your Android mobile devices and operate it using the projector’s remote control.

Multi-PC Projection
With the control of a host PC, up to 50 terminals can be connected via the multi-PC projection from a single projector. The host PC acts as a moderator, selecting media from up to 4 terminals to be projected simultaneously. With the moderator function, you can maintain control and prevent tampering with what’s projected on screen.

Split Screen
Split screen allows inputs from two separate sources to be displayed side by side on the same screen. In a video conference, for example, images of presentation materials and remote participants can be shown simultaneously.

Epson iProjection
The Epson iProjection application enables a wireless connection for projecting images and files from your smart devices. The new “QR Code Reader” function makes this wireless connection even easier by simply reading the QR code that is projected on the screen from your smart devices.

* In iProjection, projector profile search, multi-screen display, distribution function, audio transfer, movie file transfer, interrupt connection disabling and encryption data transfer capabilities are not supported.

Epson Projector Management
With Epson’s network monitoring and control software, you can see from a single PC which projectors are available and whether they are running efficiently – even across the biggest networks. You can access, configure and control all your projectors remotely, as well as receive instant email alerts for pre-defined critical indicators such as non-functioning devices or overheating lamps. Each projector’s IP can also be accessed remotely via LAN connection.

Wireless Transmission
Enjoy enhanced connectivity and flexibility with Wi-Fi connectivity*. Easily share and transmit images, documents and files from your smart devices using the “Epson iProjection” application for smooth and smart projections. And with an additional attachment piece holding the wireless LAN adaptor in place, your transmissions will never be interrupted.

* Wireless LAN adaptor ELPAP10 is required.

User-friendly Features
Home Screen
View and access your most frequently used functions immediately on the home screen. See all source information at a glance, no matter what the source input. With all the information you need right there on the home screen, wireless connections have never been easier.

Auto Power On
With the auto power on function, projection starts automatically once a projection signal is detected via VGA cable, HDMI cable and USB port. This provides an easy and hassle-free presentation.

Firmware Updates
Easily update your projector’s firmware without having to bring it to a service centre. To update, simply insert a USB memory stick with the necessary updates. Updates can be done over LAN network or via USB-B connection.

Environmentally-friendly
Longer Lamp Life
With a long lamp life of 10,000 hours in eco-mode, the frequency of costly lamp replacements is reduced, saving you time and money.

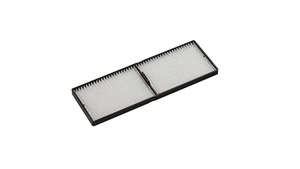

Air Filter
With a maintenance cycle of 10,000 hours in eco-mode, the need for regular maintenance of the air filter is minimised to save you time and money.

Eco Features
- Uses just 0.31W of power in standby mode
- Projector optics employ lead-free lenses
- Unpainted plastic housing reduces the environment impact
- The flame retardants used in the plastic housing do not contain chlorine or bromine

Better Products for a Better Future™
For more information on Epson's environmental programmes, visit http://global.epson.com/SR/environment.

Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system (3LCD)

Brightness2:


White Light Output (Normal/Eco): 4,200lm / 2,700lmColour Light Output: 4,200lm

Connectivity:


Network: Wired LAN: RJ45 x 1Analog Input: D-Sub 15Pin: 2 (1 Blue, 1 Black)
Composite: 1Digital Input: HDMI: 2Output Terminal: (In common with Computer2)
D-Sub 15Pin: 1 (Black)
HDMI: 2 (1 with MHL)
USB Type-A: 1 (For USB Memory, Firmware Update, Copy OSD Settings, Wireless LAN)
USB Type-B: 1 (For USB Display, Mouse, Keyboard, Control, Firmware Update, Copy OSD Settings)Audio Input: RCA (White/Red): 1
Stereo Mini Jack: 2Audio Output: Stereo Mini Jack: 1Control I/O: RS-232C: D-Sub 9pin x 1

Contrast Ratio:


Contrast Ratio: 15,000:1

Wireless Specifications (Wireless LAN: Built-in):


Supported Speed for Each Mode: IEEE 802.11b: 11 Mbps*3
IEEE 802.11g: 54 Mbps*3
IEEE 802.11n: 130 Mbps*3Wireless Security: Quick Mode: OPEN, WPA2-PSK
Advanced Mode: OPEN, WPA2-PSK, WPA/WPA2-PSK

Screen Size (Projected Distance):


Zoom : Wide: 30” - 300” [ 0.83 - 8.54 m]Zoom : Tele: 30” - 300” [1.36 - 13.86 m]

Geometric Correction:


Vertical/Horizontal Keystone: ±30° / ±30° (Zoom: Centre)Quick Corner: Yes

Operating Temperature:


Operating Temperature: 5° C – 40° C <41° F - 104° F> (Below 2,286m / 7,500ft)
5° C – 35° C <41° F - 95° F> (Above 2,286m / 7,500ft with High Altitude Mode)

Operating Altitude:


Operating Altitude: 0 - 3,048 m (0 - 10,000 ft) (over 1,500m / 4,921ft : with high altitude mode)

Start-Up Period:


Start-Up Period: About 8 seconds, Warm-up Period: 30 seconds

Cool Down Period:


Cool Down Period: Instant Off

Internal Speaker(s):


Sound Output: 16W Monaural

Dimension Excluding Feet (W x H x D):


Dimension Excluding Feet (W x H x D): 377 x 101 x 291 mm

Air Filter:


Type: High Efficiency FilterMaintenance Cycle*4: 5,000 hours (Power Consumption: Normal)
10,000 hours (Power Consumption: Eco)

Fan Noise:


Fan Noise (Normal / Eco): 37dB / 28dB

Power:


Power Supply Voltage: 100 - 240 V AC ±10%, 50/60 Hz

General:


Weight: Approx. 4.2kg

Direct Power On / Off:


Direct Power On / Off: Yes

Specifications of Main Parts:


LCD: Size: 0.63” (D10,2 Fine)
Native Resolution: XGA (1024 x 768)Lamp: Type: Lamp
Life (Normal / Eco)*1: 5,000 / 10,000 hours

Notes:

*1 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

*2 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4;

white light output measured in accordance with ISO 21118.

*3 Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer

system, the environment and other factors.*4 When used in the general office environment (the amount of floating dust: 0.04 - 0.2 mg/m3). Based on the Epson’s in-house test results.
