Projectors Business Laser Projectors Epson EB-L1060UNL

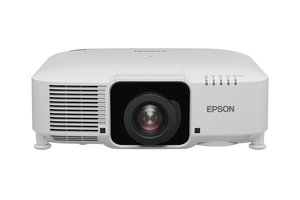

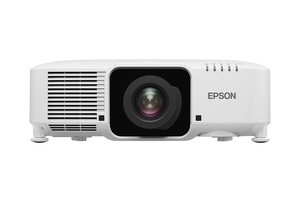

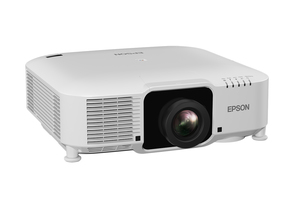

Epson EB-L1060UNL WUXGA 3LCD PROJECTOR

Zoom In
Epson EB-L1060UNL WUXGA 3LCD PROJECTOR
Epson EB-L1060UNL WUXGA 3LCD PROJECTOR
Epson EB-L1060UNL WUXGA 3LCD PROJECTOR
Epson EB-L1060UNL WUXGA 3LCD PROJECTOR
Epson EB-L1060UNL WUXGA 3LCD PROJECTOR
Epson EB-L1060UNL WUXGA 3LCD PROJECTOR
Epson EB-L1060UNL WUXGA 3LCD PROJECTOR
Epson EB-L1060UNL WUXGA 3LCD PROJECTOR
Epson EB-L1060UNL WUXGA 3LCD PROJECTOR
Epson EB-L1060UNL WUXGA 3LCD PROJECTOR

MORE THAN MEETS THE EYES.



    • A 6,000 lumen high brightness projector designed to deliver unyielding laser performance, from any position to most surfaces, up to 20,0001 long lasting hours for the laser light source - maintenance-free2.



Find Accessories Support

20,000 hours of maintenance-free** use
The newly designed laser light source delivers 20,000 hours* of maintenance-free** for the laser light source only. And with the advanced electrostatic filter having an equally long-lasting life, you enjoy peace of mind in using these highly reliable laser projectors.

Adaptive Projection
EB-L1000 series can be rotated 360° in any direction - horizontally, vertically and rotationally - without any loss in image brightness. This makes it ideal for a wide range of applications, such as projecting onto ceilings and floors.

Borderless Multi Projection
Offering a variety of functions for multi-projector installations, the EB-L1000 series lets you adjust brightness, colour and the position of overlapping areas for seamless, beautiful displays. There is also an Auto Scaling function for easy multi-projector displays and an Advanced Edge Blending function for more precise edge-blending adjustment.

Extensive Lens Options

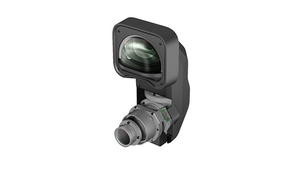

The Epson EB-L1000 series offers an extensive line-up of optional lenses to fit any venue or subject. And with the ELPLX01/ELPLX01W and ELPLX02 zero offset, ultra-short throw lens, you can install the projector even in tight spaces.

Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system (3LCD)

Brightness*1:

White Light Output (Normal/Eco): 6,000lm / 4,200lmColour Light Output: 6,000lm

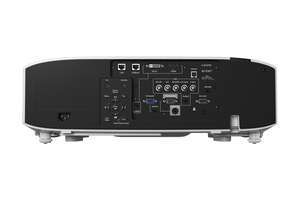

Connectivity:

Network: Wired LAN: RJ45 x 1 (100Mbps)
Wireless: OptionalAnalog Input: D-Sub 15pin: 1 (Blue)
5BNC: 1Digital Input: HDBaseT (RX): RJ45 x 1 (with HDCP 2.2)
HDMI: 1 (with HDCP 2.2)
DVI-D: 1Output Terminal: D-Sub 15pin: 1Audio Input: Stereo Mini Jack: 3Audio Output: Stereo Mini Jack: 1Control I/O: Remote: Stereo Mini Jack x 1
RS-232C: D-Sub 9pin x 1Others: USB Type B: 1 (for Firmware Update, Copy OSD Settings)
USB Type A: 1 (for Wireless LAN, Firmware Update, Copy OSD Settings and Content Playback*2)

Projection Lens:

Type: Power Zoom / Power Focus / Power ShiftFocal Length: 24.0 - 38.2 mmZoom Ratio: 1 - 1.6F-number: 1.7 - 2.3

Contrast Ratio:

Contrast Ratio: Over 2,500,000:1

Wireless Specifications (Wireless LAN: Built-in):

Supported Speed for Each Mode : IEEE 802.11b: 11Mbps*3
IEEE 802.11g: 54Mbps*3
IEEE 802.11n: 130Mbps*3Wireless LAN Security: Quick: Open, WPA2-PSK / Advanced: Open, WPA/WPA2-PSK, WPA/WPA2-EAP Supported EAP type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAP

Screen Size (Projected Distance):

Zoom : Wide: 50” - 1,000” [1.53 - 31.57 m]Zoom : Tele: 50” - 1,000” [2.48 - 50.44 m]

Geometric Correction:

Vertical/Horizontal Keystone: ±45° / ±30° (Zoom: Tele) (with Standard Lens)Curve Surface: YesPoint Correction: YesQuick Corner: Yes

Operating Temperature:

Operating Temperature: 0 - 45 °C <32 - 113 °F> 0 - 50 °C <32 - 122 °F> (Below 2,286m / 7,500ft) (Below
0 - 40 °C <32 - 104 °F> 0 - 45 °C <32 - 113 °F> (Over 2,286m / 7,500ft) (with high altitude mode)

Operating Altitude:

Operating Altitude: 0 - 3,048 m <0 - 10,000 ft> (over 1,500m / 4,921ft : with high altitude mode)

Start-Up Period:

Start-Up Period: Less than 7 seconds, Warm-up Period: 30 seconds

Cool Down Period:

Cool Down Period: Instant Off

Direct Power On/Off:

Direct Power On/Off: Yes

Dimension Excluding Feet (W x H x D):

Fan Noise (Normal/Eco): 34dB / 30dBDimension Excluding Feet (W x H x D): 545 x 189 x 484 mm

Air Filter:

Type: High Efficiency FilterMaintenance Cycle: 20,000 hours*4

Projectors Facets:

Features, Projectors Facets: Wifi
Quick Corner
Edge Blending
Lens Interchangeable
Curve
Corner wall
4k enhancementLaser / Lamp, Projectors Facets: LaserResolution, Projectors Facets: WUXGAContrast Ratio, Projectors Facets: Over 2,500,000:1Brightness Range Lumens, Projectors Facets: 6001

Main Parts Specification:

LCD: Size:0.72” (C2 Fine)

Specifications of Main Parts:

Native Resolution: WUXGA (1920 x 1200)
See Full Specs Hide Full Specs
Print All Specs

Notes:

1 20,000H life for laser light source: Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter.

2 For laser light source only.

* 20,000H life for laser light source: Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter.

** For laser light source only. No maintenance for the light source required up to 20,000H.
