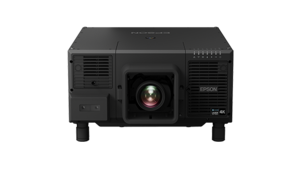

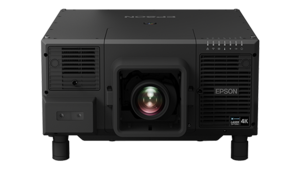

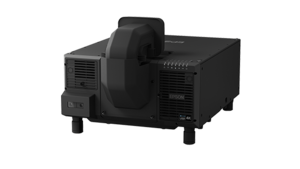

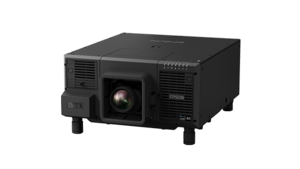

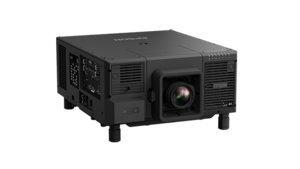

Epson EB-L12000QNL Laser 4K 3LCD Projector without Lens

INCREDIBLY BRIGHT, AMAZINGLY RELIABLE.

Get ready to impress and do even more with the EB-L12000QNL high brightness laser projectors.

Deliver stunning images in native 4K resolution, and revel in colour brightness of up to 12,000 lumens with Epson 3LCD technology.

      • Native 4K Panel
      • High Contrast Ratio
      • Wide Range of Connectivity



      All information is correct as of 26th Jan 2019
      The units will be available in the later quarter of 2019

Native 4K Panel
One single chip, 1.03-inch native 4K panel delivers ultra-high definition image quality with a native resolution of 3840x2160. The panel with its 6 μm pixel-pitch is designed by Epson and manufactured to the highest standards in Epson Japanese factories.

20,000-Hour Maintenance Free
A newly designed laser light source and advanced electrostatic filter deliver 20,000 hours*3 of maintenance-free for the laser light source only.

Inorganic LCD panels and an inorganic phosphor wheel combine with a dust-proof design for 20,000 hours of warranty*4. Additionally, the laser light source is highly reliable, eliminating the worry of the light burning out during important presentations.

Total Liquid Cooling System
A newly developed liquid cooling system maintains optimal temperatures of key optical elements. The inorganic LCD panels, inorganic phosphor wheel and laser light source are kept at optimal temperature no matter how the projector is installed. This efficient cooling system contributes to minimising body size and noise.

High Contrast Ratio
Add brilliance to your presentations. Boasting stunning brightness of up to 12,000 lumens and a high contrast ratio of more than 2,500,000:1, these projectors enable you to project beautiful, well defined images wherever you are, regardless of ambient light.

Auto Geometry Correction with Built-In Camera
The built-in camera detects images that are not projected correctly, allowing the projector to automatically correct a variety of geometry corrections like corner and curved projections.

Multi-Directional Projection
EB-L12000QNL can be rotated 360° in any direction — horizontally, vertically and rotationally — without any loss in image brightness.

Wide Range of Connectivity
EB-L12000QNL is compatible with a wide range of external devices, and additional ports now include DVI-D, HDMI, HDBaseT and SDI. Ideal for large venues, HDBaseT can transmit Full HD video, audio and Ethernet at low cost through cat 5e/6 cables up to 100 metres.

Projectors Facets:


Resolution, Projectors Facets: 4KContrast Ratio, Projectors Facets: Over 2,500,000:1Brightness Range Lumens, Projectors Facets: 10001Features, Projectors Facets: Wifi
Quick Corner
Edge Blending
Lens Interchangeable
Curve
Corner wallLaser / Lamp, Projectors Facets: Laser

Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system

Specifications of Main Parts:


LCD: Size: 1.04” (D11)
Native Resolution: 4K (3840 x 2160)
Native Resolution: 4K (3844 x 2164) *Margin pixels includedLightsource: Type: Laser Diode
Life (Normal/Eco): 20,000 / 30,000 hoursProjection Lens: Type: Power Zoom, Power Focus
F-Number: 1.8 - 2.3
Focal Length: 36.0 - 57.3 mm
Zoom Ratio: 1 - 1.61
Throw Ratio: 1.52 - 2.47
Lens Exchange: Yes
Lens Shift - Mode: Powered
Lens Shift - Vertical (Up/Down): ±58 %
Lens Shift - Horizontal (Left/Right): ±16 %

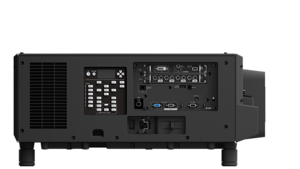

Connectivity:


Network: Wired LAN: RJ45 x1 (etherCON)
Wireless: 1Analog Input: Mini D-Sub 15Pin: 1Digital Input: HDBaseT: 1 (RJ45)Expansion Interface Slot: Quantity: 2
Factory Set - Slot 1: ELPIF01 (HDMI & DVI-D)
Factory Set - Slot 2: ELPIF02 (SDI)Expansion Interface Board: ELPIF01 - HDMI: 1 (HDMI 19p)
ELPIF01 - DVI-D: 1
ELPIF01 - DC OUT: 1
ELPIF02 - SDI In: 4 (SD-SDI, HD-SDI, 3G-SDI, 12G-SDI)
ELPIF02 - SDI Out: 4 (SD-SDI, HD-SDI, 3G-SDI, 12G-SDI)
ELPIF03 - DisplayPort In: 2 (DP 20p)Analog Output: Mini D-Sub 15Pin: 1Control I/O: RS-232C: 1
Remote Control Input: 1 (Stereo Mini)Others: USB Type A: 1 (for Firmware Update, Copy OSD Settings, DC Out 900mA)
USB Type B: 1 (for Firmware Update, Copy OSD Settings)

Contrast Ratio:


Contrast Ratio: Over 2,500,000:1

Wireless Specifications (Wireless LAN: Built-in):


Supported Speed for Each Mode: IEEE 802.11b (2.4GHz): 11 Mbps*2
IEEE 802.11g (2.4GHz): 54 Mbps*2
IEEE 802.11n (2.4GHz): 130 Mbps*2
IEEE 802.11a (5GHz): 54 Mbps*2
IEEE 802.11n (5GHz): 270 Mbps*2Wireless LAN Security: Quick Mode: OPEN, WPA2-PSK, Advanced Mode: OPEN, WPA/WPA2-PSK, WPA-Enterprise

Screen Size (Projected Distance):


Zoom : Wide: 60” - 1000 “ [1.98 - 34.19 m] (TBD)Zoom : Tele: 60” - 1000” [3.24 - 55.28 m] (TBD)

Geometric Correction:


Vertical/Horizontal Keystone: ±45° (TBD) / ±30° (TBD)Curve Surface: YesCorner Wall: YesPoint Correction: YesQuick Corner: Yes

Operating Temperature:


Operating Temperature: 0 - 50 °C <32 - 122 °F> (low altitude)
0 - 45 °C <32° - 113 °F> (high altitude)

Operating Altitude:


Operating Altitude: 0 - 3,048 m (0 - 10,000 ft)

Start-Up Period:


Start-Up Period: Less than 26 seconds, Warm-up period: 30 seconds

Cool Down Period:


Cool Down Period: Instant Off or 0 second

Direct Power On/Off:


Direct Power On/Off: Yes

Dimension Excluding Feet (W x H x D):


Dimension Excluding Feet (W x H x D): 280 x 720 x 620 mm

Power Supply Voltage:


Power Supply Voltage: 100 - 120 V AC, 200 - 240 V AC +/- 10 %, 50/60 Hz

Weight:


Weight: Approx. 113.3 lbs. / 51.4 kg

Air Filter:


Maintenance Cycle: 20,000 hours *3

Fan Noise:


Fan Noise (Normal / Eco): 45 / 38 dB

Power Consumption (220 - 240V):


Lamp On (Normal/Eco): 1741W / 1030WStand By (Network On / Off): 2W / 0.5W

Brightness2:


White Light Output (Normal/Eco): 12,000 / 8,400 lmColour Light Output: 12,000 lm

Notes:

*1 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.

*2 Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.

*3 20,000H life for laser light source: Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environments. Replacement of parts other than the light source may be required in a shorter period.

*4 Three years or 20,000 hours, whichever comes first.
