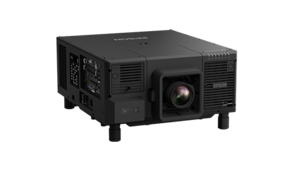

Epson EB-L20000UNL Laser WUXGA 3LCD Projector without Lens

Product Models displayed on this website may be available in certain regions only.


Make a powerful impact on a bigger stage with the EB-L20000UNL high brightness laser projectors.

With high reliability and a robust design protected by a triple layered dust-proof structure, enjoy ease of mobility and installation flexibility. It is immensely flexible with 360° rotation, adjustable tilt and large variety of lenses to suit any venue or application.

      • White and Colour Brightness at 20,000 lumens
      • WUXGA (1920 x 1200) Resolution
      • HDBaseT Connectivity

20,000-Hour Maintenance Free
A newly designed laser light source and advanced electrostatic filter deliver 20,000 hours*3 of maintenance-free for the laser light source only.

Inorganic LCD panels and an inorganic phosphor wheel combine with a dust-proof design for 20,000 hours of warranty*4. Additionally, the laser light source is highly reliable, eliminating the worry of the light burning out during important presentations.

Total Liquid Cooling System
A newly developed liquid cooling system maintains optimal temperatures of key optical elements. The inorganic LCD panels, inorganic phosphor wheel and laser light source are kept at optimal temperature no matter how the projector is installed. This efficient cooling system contributes to minimising body size and noise.

High Contrast Ratio
Add brilliance to your presentations. Boasting stunning brightness of up to 20,000 lumens and a high contrast ratio of more than 2,500,000:1, these projectors enable you to project beautiful, well defined images wherever you are, regardless of ambient light.

Auto Geometry Correction with Built-In Camera
The built-in camera detects images that are not projected correctly, allowing the projector to automatically correct a variety of geometry corrections like corner and curved projections.

Multi-Directional Projection
EB-L20000UNL can be rotated 360° in any direction — horizontally, vertically and rotationally — without any loss in image brightness.

Wide Range of Connectivity
EB- L20000UNL is compatible with a wide range of external devices, and additional ports now include DVI-D, HDMI and HDBaseT. Ideal for large venues, HDBaseT can transmit Full HD video, audio and Ethernet at low cost through cat 5e/6 cables up to 100 metres.

Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system

Specifications of Main Parts:

LCD: Native Resolution: WUXGA (1920x1200)
Size: 1.03” (D11)Lightsource: Type: Laser Diode
Life (Normal/Eco): 20,000 / 30,000 hoursProjection Lens: Lens Exchange: Yes
Lens Shift - Vertical (Up/Down): ±60 %
Focal Length: 36.0 - 57.3 mm
Throw Ratio: 1.57 - 2.56
Lens Shift - Horizontal (Left/Right): ±18 %
F-Number: 1.8 - 2.3
Type: Power Zoom, Power Focus
Zoom Ratio: 1 - 1.61
Lens Shift - Mode: Powered


Network: Wired LAN: RJ45 x1 (etherCON)
Wireless: 1Analog Input: Mini D-Sub 15Pin: 1
BNC: 1Digital Input: HDBaseT: 1 (RJ45)
SDI: 1 (SD-SDI, HD-SDI, 3G-SDI)Expansion Interface Slot: Factory Set - Slot 2: Blank
Quantity: 2
Factory Set - Slot 1: ELPIF01 (HDMI & DVI-D)Expansion Interface Board: ELPIF03 - DisplayPort In: 2 (DP 20p)
ELPIF01 - HDMI: 1 (HDMI 19p)
ELPIF01 - DVI-D: 1Analog Output: Mini D-Sub 15Pin: 1Control I/O: RS-232C: 1
Remote Control Input: 1 (Stereo Mini)Digital Output: BNC: 1Others: USB Type A: 1 (for Firmware Update, Copy OSD Settings, DC Out 900mA)
USB Type B: 1 (for Firmware Update, Copy OSD Settings)

Contrast Ratio:

Contrast Ratio: Over 2,500,000:1

Wireless Specifications (Wireless LAN: Built-in):

Supported Speed for Each Mode: IEEE 802.11b (2.4GHz): 11 Mbps*2
IEEE 802.11g (2.4GHz): 54 Mbps*2
IEEE 802.11n (2.4GHz): 130 Mbps*2
IEEE 802.11a (5GHz): 54 Mbps*2
IEEE 802.11n (5GHz): 270 Mbps*2Wireless LAN Security: Quick Mode: OPEN, WPA2-PSK, Advanced Mode: OPEN, WPA/WPA2-PSK, WPA-Enterprise

Screen Size (Projected Distance):

Zoom : Wide: 60” - 1000” [1.99 - 34.43 m]Zoom : Tele: 60” - 1000” [3.26 - 55.63 m]

Geometric Correction:

Vertical/Horizontal Keystone: ±44° / ±30° (TBD)Curve Surface: YesCorner Wall: YesPoint Correction: YesQuick Corner: Yes

Operating Temperature:

Operating Temperature: 0 - 50 °C <32 - 122 °F> (low altitude)
0 - 45 °C <32° - 113 °F> (high altitude)

Operating Altitude:

Operating Altitude: 0 - 3,048 m (0 - 10,000 ft)

Start-Up Period:

Start-Up Period: Less than 16 seconds, Warm-up period: 30 seconds

Cool Down Period:

Cool Down Period: Instant Off or 0 second

Direct Power On/Off:

Direct Power On/Off: Yes

Dimension Excluding Feet (W x H x D):

Dimension Excluding Feet (W x H x D): 280 x 720 x 620 mm

Power Supply Voltage:

Power Supply Voltage: 100 - 120 V AC, 200 - 240 V AC +/- 10 %, 50/60 Hz


Weight: Approx. 109.3 lbs. / 49.6 kg

Air Filter:

Maintenance Cycle: 20,000 hours *3

Fan Noise:

Fan Noise (Normal / Eco): 45 / 38 dB

Power Consumption (220 - 240V):

Lamp On (Normal/Eco): 1860W / 1123WStand By (Network On / Off): 2W / 0.5W


White Light Output (Normal/Eco): 20,000 / 14,000 lmColour Light Output: 20,000 lmLight Output (Center): 21,600lm*


* This light output value is measured at the center of the screen as a reference value which is equivalent to lumens. There is no official standard for Light Output (Center) measurements and this measurement is made based on the method set by Epson. Please note, each manufacturer measures Light Output (Center) independently according to their own methods and therefore it is recommended to refer to Color Light Output measured in accordance with IDMS 15.4 and White Light Output measured in accordance with ISO 21118 when selecting and comparing projectors.

*1 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.

*2 Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.

*3 20,000H life for laser light source: Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environments. Replacement of parts other than the light source may be required in a shorter period.

*4 Three years or 20,000 hours, whichever comes first.
